3000W 3000VA 19 Inch Lithium UPS Lifepo4 Battery UPS Online Rack Mount Lithium-ion UPS LCD, USB EPO RS232 Dry contact
DESCRIPTIONS:
The RSUN RT-Li Series is a compact 2U online UPS built around lithium-ion energy storage and a robust double-conversion platform. It delivers a pure sine wave output with zero interruption, maintaining stable power for environments where precise voltage and frequency control are non-negotiable.
Its modular approach supports extended backup time through additional lithium battery packs, allowing users to scale runtime as their systems grow, without sacrificing valuable rack space.
By adopting a 3-level inverter design along with soft-switching technology, the RT-Li Series minimizes thermal stress and switching losses, improving durability and cutting unnecessary power consumption. Achieving up to 95.5% efficiency in online mode and 98.5% in ECO mode, it helps reduce energy costs while supporting the performance demands of data centers, telecom networks, and industrial applications.
MAIN FEATURES:
• Long-lasting LiFePO4 battery with 2000+ cycle endurance
• True 1.0 power factor for full usable output
• Adjustable smart charging, digitally set from 1A to 12A
• Pure double-conversion topology for uninterrupted, conditioned power
• Selectable 208 - 240VAC input to fit various installations
• High operating efficiency, reaching 95.5% online and 98.5% in ECO
• Service-friendly design for fast, simple maintenance
SPECIFICATIONS:
| Model | RT-1K-Li | RT-2K-Li | RT-3K-Li |
| Rated Capacity | 1000W | 2000W | 3000W |
| INPUT |
| Input Formats | L+N+PE |
| Rated Input Voltage | 208/220/230/240VAC |
| Voltage Range | 110~300VAC ( 110~176VAC, 280~300VAC power limited ) |
| Frequency Range | 50/60Hz±6Hz, ± 10Hz (setable) |
| Input Power Factor | ≥0.99 |
| Input Harmonic Distortion | ≦3% THD(linear load), ≦5% THD(non-linear load) PF=0.8 |
| OUTPUT |
| Output Formats | L+N+PE |
| Output Voltage | 208/220/230/240VAC |
| Output Accuracy | ±1% |
| Output Frequency | AC mode: same as AC ,Battery mode:50/60Hz±1% |
| Output Harmonic Distortion | ≦3% THD(linear load), ≦5% THD(non-linear load) PF=0.8 |
| Output Power Factor | 1.0 |
| Transfer Time | AC mode to Batt. Mode:0ms, Inverter mode to Bypass mode:4ms |
| Load Capacity | AC Mode: 30min@102%~110% Load / 10min@110%~130% Load / 30s@130%~150% Load / 200ms@>150% Load Battery Mode: 1min@102%~110% Load / 10s@110%~130% Load / 3s@130%~150% Load / 200ms@>150% Load |
| MACHINE EFFICIENCY |
| AC Mode | Full load efficiency 94.5%@220VAC | Full load efficiency 95.5%@220VAC | Full load efficiency 95.5%@220VAC |
| Battery Mode | Full load efficiency 89.5%@36VDC | Full load efficiency 91.5%@72VDC | Full load efficiency 91.5%@ 72VDC |
| BATTERY |
| Battery Lifecycle | ＞2000 |
| Single Cell Type | LFP26700-3600mAh |
| Battery Cell Configuration | 276.48Wh | 552.96Wh | 829Wh |
| Battery Voltage | 38.4V | 76.8V | 76.8V |
| Charging Voltage | 42VDC ± 1% | 84VDC ± 1% | 84VDC ± 1% |
| Charging Mode | 2 stage charging management (CC-CV) |
| Charging Current | 4A default, 12A max. | 4A default, 4A max. |
| WORKING ENVIRONMENT |
| Ambient Temperature | 0~40℃ |
| Ambient Humidity | 20%~95%(No Condensation) |
| Storage Temperature | -15~60℃(Battery:0~40℃) |
| Altitude | <1000m,Derating at above 1000m, maximum 4000m,Refer to IEC62040 |
| DISPLAY |
| LCD | Working mode/load/battery power/input/output ect. |
| STANDARD & CERTIFICATION |
| Standard & Certification: | EN/IEC 61000, EN/IEC 62040, GB/T4943, YD/T 1095, TLC etc. |
| PHYSICAL |
| case size (W*D*H) | 438*413*88mm(2U) | 438*532*88mm(2U) | 438*532*88mm(2U) |
| COMUNICATION INTERFACE |
| INTERFACE | 1*USB,1*RS232,1*EPO |
Flexible & Multiple installation options:
The UPS is built with flexible installation in mind, making it suitable for a wide range of setups. It can be placed directly into any standard 19" rack using the included rack ears, or paired with a compatible rail kit if sliding access is preferred. For users who need a freestanding solution, optional vertical brackets allow the unit to operate securely outside the rack. When several external battery modules are arranged in a tower layout, additional stand extensions can be added to keep everything aligned and stable. This adaptable mounting approach helps save space, protects system structure, and keeps maintenance straightforward.
Why Choose a Lithium Battery UPS?
-
Longer Operating Life
Lithium-ion systems last far longer than traditional lead-acid units, often three to five times longer, cutting down on replacements and ongoing service expenses.
-
Compact and Easy to Handle
Their lighter weight and smaller footprint make installation simpler and free up valuable space, especially in dense or mobile setups.
-
Fast Recharging & Higher Efficiency
Lithium batteries recover power quickly and operate with superior energy efficiency, helping maintain consistent uptime for critical equipment.
-
Intelligent Safety Management
A built-in BMS continuously supervises temperature, voltage, current, and short-circuit risks, providing an extra layer of protection and improving overall reliability.
-
Eco-Friendly Power Solution
With no hazardous heavy metals and strong recyclability, lithium batteries support sustainable practices and meet modern environmental standards.
APPLICATIONS:
• Data Centers & IT Environments - Provides reliable backup for servers, storage arrays, and network hardware, helping prevent outages and protect critical information.
• Medical & Clinical Facilities - Ensures clean, uninterrupted power for vital equipment and diagnostic devices where consistent operation is essential.
• Homes & Workspaces - Keeps key electronics, such as computers, modems, and security systems—running smoothly during power failures.
• Industrial & Telecom Operations - Delivers stable support for high-demand loads across production floors and communication hubs, maintaining workflow continuity.
|
|

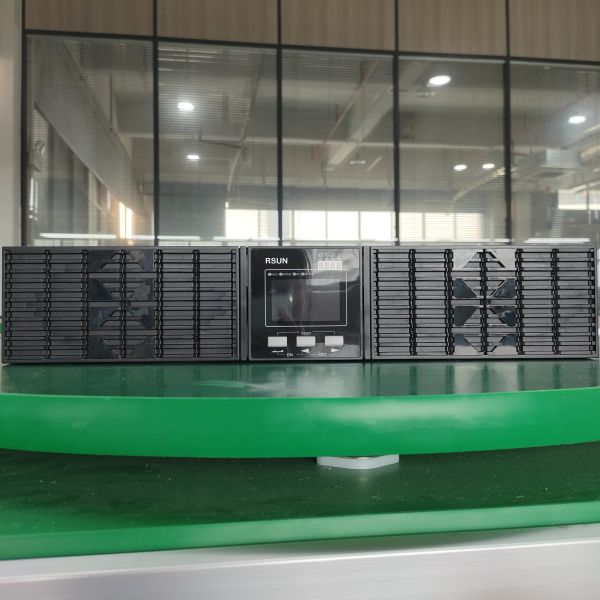

3000W 3000VA 19 Inch Lithium UPS Lifepo4 Battery UPS Online Rack Mount Lithium-ion UPS LCD Images
|
